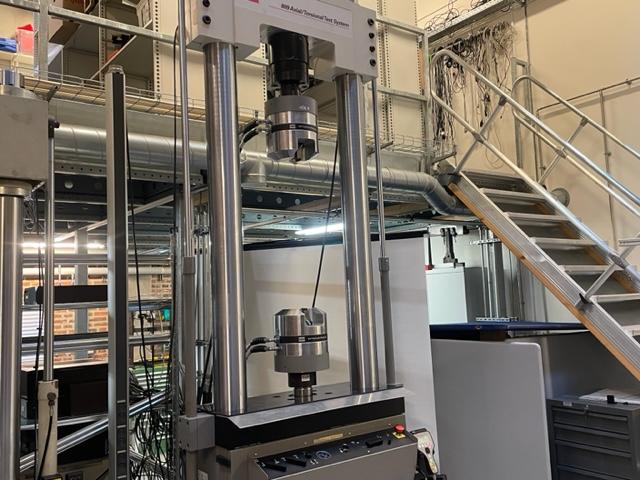

MTS Series 809 Axial/Torsional Test System​ (Load Frame Model: 319.25)

Specifications

MTS Series 809 Axial/Torsional Test System​

This is a servo-hydraulic testing machine for axial/torsional static, dynamic and fatigue testing (Load Frame Model: 319.25). The instrument specifications are:

Specifications

MTS Series 809 Axial/Torsional Test System​

This is a servo-hydraulic testing machine for axial/torsional static, dynamic and fatigue testing (Load Frame Model: 319.25). The instrument specifications are:

  • Load frame maximum rated axial force capacity: Dynamic 250 KN (55 kip), Static 333 KN (75 kip)
  • Load frame maximum rated torsional force capacity: 2200 N-m (20000 in-lbf)
  • Full scale displacement range: ±80 mm
  • Full scale torsional range: ±60°
  • Test applications: Tension, Compression, Bend, Stress relaxation, Low cycle fatigue, High-cycle fatigue, Fatigue crack growth, Fracture toughness, Thermomechanical fatigue (TMF), Dynamic characterization, High temperature, Low temperature, Corrosive environments.
