EVO LS15, SEM, Zeiss

Specifications

EVO LS15, SEM, Zeiss

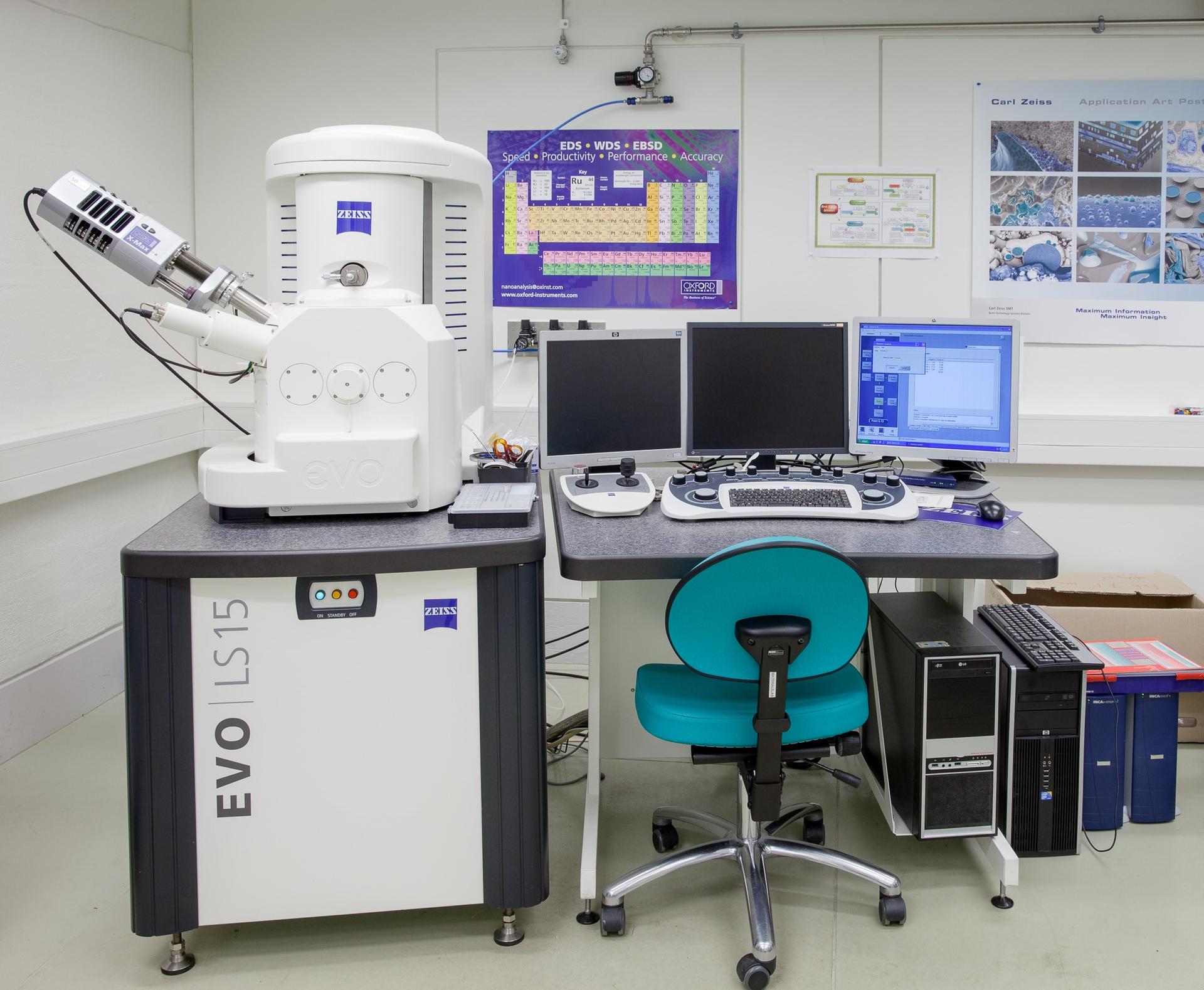

The Zeiss EVO LS15 is a variable pressure  Scanning Electron Microscope (SEM).   The system is capable of operating in high vacuum  and environmental or variable pressure modes allowing a wide variety of specimens to be examined.

Specifications

EVO LS15, SEM, Zeiss

The Zeiss EVO LS15 is a variable pressure  Scanning Electron Microscope (SEM).   The system is capable of operating in high vacuum  and environmental or variable pressure modes allowing a wide variety of specimens to be examined.

Instrument specifications:

  • Magnification: 5 – 200000 x (1000000 x theoretical)
  • Resolution:   3 nm @ 30kV 4.5nm @ 30kV VP mode
  • Detector available: SE, VPSE, BSD and X-ray Detector
  • Includes High Vacuum mode, Variable Pressure mode and Extended Pressure mode
  • Maximum specimen height: 145mm
  • Max specimen diameter: 250mm

Accessories:

  • EDX, X-max 50mm^2, Oxford Instruments, for elemental chemistry information.
